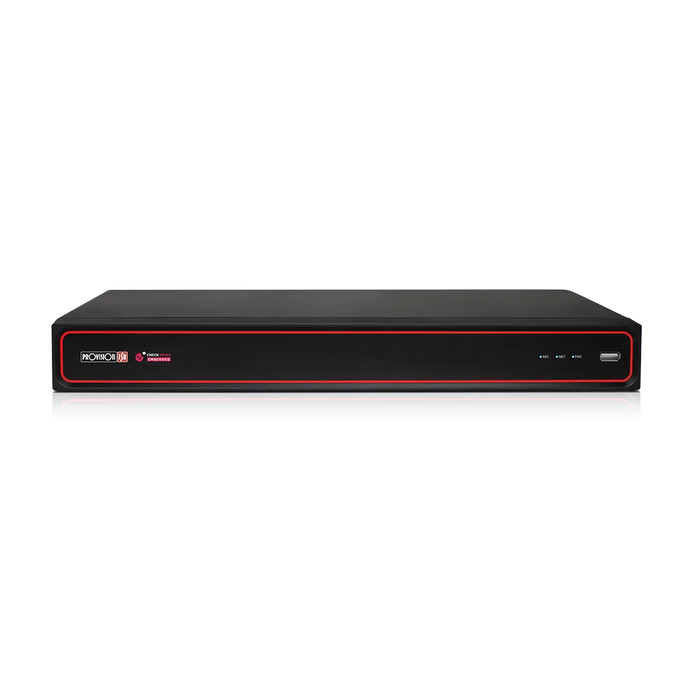

Provision-ISR SH-8100A5N-5L-V2 Hybrid DVR 8CH HD/IP Recorder
SKU SH-8100A5N-5L-V2
Ask an Expert - (855) 320-0003
SH-8100A5N-5L-V2
8CH "4 in 1" + 4CH IP Dynamic Hybrid DVR
Provision-ISR SH-8100A5N-5L-V2 is a high-quality dynamic hybrid digital video recorder obtainable in an elegant 1U case. This technology allows users to add advanced IP cameras alongside analog ones and enjoy high-quality images and other advanced features available on IP cameras only. The recorder supports Provision-ISR's DDA Video Analytics for analog & IP cameras.
Video Input:
- 8CH Standard BNC + 4CH IP
Video Output:
- HDMI – FHD
- VGA
- CVBS
Recording:
- HD Analog: 5MP Lite: Up to 12FPS Per Channel
- CVBS: 960H: up to 25/30FPS Per Channel
- IP: 5MP and lower: 25/30FPS Per Channel
Playback:
- Local: 8Ch Simultaneously
- Remote: 4Ch Simultaneously
Audio:
- Input: 8CH + IPC Inputs
- Output: 1CH + IPC Outputs
Alarm:
- Input: 8+IPC
- Output: 2+IPC
Storage:
- 1 x SATA (Up to 10TB each)
Network:
- 1 x RJ-45: 10/100Mbps
PTZ Support:
- RS-485 / CoC / IP over Network
Power Supply:
- DC12V/2A
Analytics:
AI by IPC:
- DDA1 Analytics Supported by the camera
AI By DVR:
- AI Object detection, Line Crossing/Sterile Area (Up to 1 channel, at the expense of 4 SMD channels)
Remarks:
- The following features are based on firmware v1.4.3_83147_RD251110 and are subject to firmware version changes.
