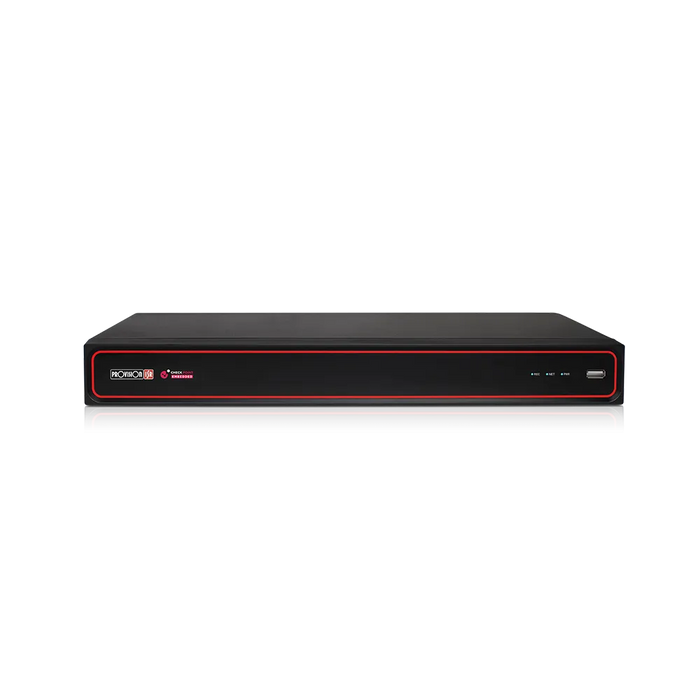

Provision-ISR SH-16200A5N-8L(1U)-V2 Hybrid DVR 16CH HD/IP Recorder
SKU SH-16200A5N-8L(1U)-V2
Ask an Expert - (855) 320-0003
SH-16200A5N-8L(1U)-V2
16CH "4 in 1" + 8CH IP Dynamic Hybrid DVR
Provision-ISR SH-16200A5N-8L(1U)-V2 is a high-quality dynamic hybrid digital video recorder obtainable in an elegant 1U case. This technology allows users to add advanced IP cameras alongside analog ones and enjoy high-quality images and other advanced features available on IP cameras only. The recorder supports Provision-ISR Standard Video Analitycs (Pixel Based).
Video Input:
- 16CH Standard BNC + 8CH IP
Video Output:
- HDMI – 4K
- VGA
- CVBS
Recording:
- HD Analog: 8MP: Up to 8FPS Per Channel /
- 8MP Lite / 3K/5MP / 4MP: Up to 12/15FPS Per Channel / 5MP Lite: Up to 20FPS Per Channel / 4MP Lite / 2MP / 1MP: Up to 25/30FPS Per Channel
- CVBS: 960H: Up to 25/30FPS Per Channel
- IP: 8MP and lower: 25/30FPS Per Channel
Playback:
- Local: 16Ch Simultaneously
- Remote: 8Ch Simultaneously
Audio:
- Input: 8CH + IPC Inputs
- Output: 1CH + IPC Outputs
Alarm:
- Input: 16+IPC
- Output: 4+IPC
Storage:
- 2 x SATA (Up to 10TB each)
- 1 x E-SATA (Up to 10TB each)
Network:
- 1 x RJ-45: 10/100/1000Mbps
PTZ Support:
- RS-485 / CoC / IP over Network
Power Supply:
- DC12V/4A
Analytics:
AI by IPC:
- DDA1 Analytics Supported by the camera
AI By DVR:
- AI Object detection, Line Crossing/Sterile Area (Up to 1 channel, at the expense of 4 SMD channels)
Remarks:
- The following features are based on firmware v1.4.2.76998_RD250317 and are subject to firmware version changes.
