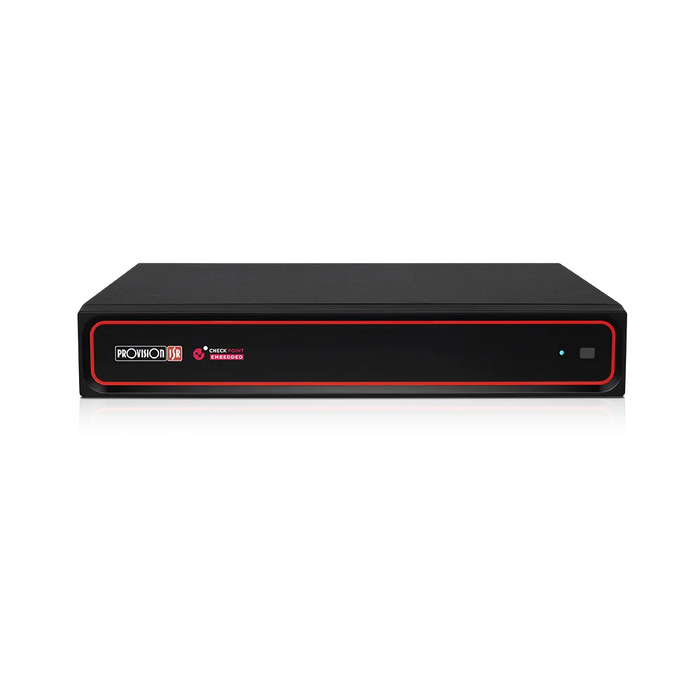

Provision-ISR NVR5-4100XN(MM) 4-Channel NVR 5MP PoE
SKU NVR5-4100XN(MM)
Ask an Expert - (855) 320-0003
NVR5-4100XN(MM)
4CH 5MP NVR with alarms, and NDAA compliance
Provision-ISR’s NVR5-4100XN(MM) is an easy-to-install recorder suitable for small-sized installations (up to 4 channels). It complies with NDAA demands, providing everything you need for a trouble-free CCTV project.
Video:
- Input: 4 Channel Support
- 4 Channel Standard Connection (Via RJ-45 Network Port)
- Output: HDMI / VGA (1080P, 1280×1024, 1024×768)
Bandwidth:
- Incoming: 40Mbps
- Outgoing: 64Mbps
Decoding Support:
- H.265S/H.265+/H.265/H264
Analytics:
- Camera Tampering, DDA2 With Object Classification, Line Crossing (DDA / Pixel Based), Sterile Area (DDA / Pixel Based), Loitering Detection, Illegal Parking, Audio Exception, Heat Map, Object Counting (Line),Object Counting (Area), Crowd Gathering, People Intrusion,Object Monitoring, Smart Search, Thermal
- *DDA Analytics Live Snapshots are not supported
Recording:
- 4CH 5MP Real-Time
- FPS: 100 (PAL) / 120 (NTSC)
Playback:
- Local: 4CH Simultaneously
- Remote: 4Ch Simultaneously
Audio:
- Input: IPC Inputs Only
- Output: IPC Outputs Only
Alarm:
- Input: Based on IPC only
- Output: Based on IPC only
Storage:
- 1 x SATA (Up to 6TB each)
USB Port:
- 2 USB 2.0 Port
Network:
- 1 x RJ-45: 10/100Mbps Each
Remarks:
- The following features are based on firmware v1.4.12_76576_RD250115 and are subject to firmware version changes.
