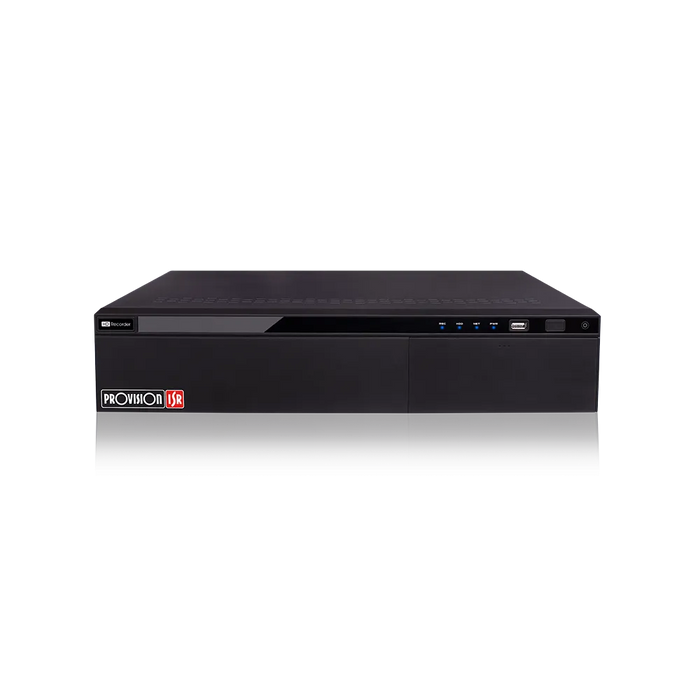

Provision-ISR NVR16-641600RFAN(2U) 64-Channel NVR 16MP PoE
SKU NVR16-641600RFAN(2U)
Ask an Expert - (855) 320-0003
NVR16-641600RFAN(2U)
64CH 16MP Face Recognition NVR with alarms, RAID support, and NDAA compliance
Provision-ISR NVR16-641600RFAN(2U) is an easy-to-install solution suitable for big-sized installations (up to 64 channels). The device features 16 alarm inputs + 4 alarm outputs and provides you with everything you need for a trouble-free CCTV project. All hardware components, including the Raid, are validated to meet the demands for reliable high-definition surveillance. This model complies with NDAA demands and ensures that your devices are cyber-protected round the clock with the integrated Check Point Quantum IoT Nano agent that provides an advanced threat prevention layer against the common attack vectors at runtime.
Video:
- Input: 64 Channel Support
- 64 Channel Standard Connection (Via RJ-45 Network Port)
- Output: HDMI1 (8K 30/60Hz, 4K, 1080P, 1280×1024) (When the resolution of HDMI1 output is 8K, HDMI2 is unavailable) HDMI2: 4K, 1080P, 1280×1024, 1024×768 HDMI3: 4K, 1080P, 1280×1024, 1024×768 HDMI4: 1080P, 1280×1024, 1024×768 VGA: 1080P 1280×1024, 1024×768 (VGA and HDMI1 output the same video source)
Bandwidth:
- Incoming: 640Mbps
- Outgoing: 640Mbps
Decoding Support:
- H.265S/H.265+/H.265/H264
Analytics:
- Camera Tampering, DDA2 With Object Classification, Line Crossing (DDA / Pixel Based), Sterile Area (DDA / Pixel Based), Object Monitoring, Object Counting (DDA), Crowd Gathering, People Intrusion, Smart Search, Face Recognition (Up to 16 CH), LPR, Thermal.
- Advanced Face Recognition Mode: Supports 4 Non-AI IPCs and performs face detection and recognition.
Recording:
- 64CH 16MP Real-Time
- FPS: 1600 (PAL) / 1920 (NTSC)
Playback:
- Local: 16Ch Simultaneously
- Remote: 16Ch Simultaneously
Audio:
- Input: 1CH + IPC Inputs
- Output: 1CH + IPC Output
- 2 Way Audio
Alarm:
- Input: 16+IPC
- Output: 4+IPC
Storage:
- 8 x SATA (Up to 10TB each)
- 2 x E-SATA (Up to 10TB each)
- RAID: (0/1/5/6/10) Support
USB Port:
- 2 USB 2.0 Port + 1 USB 3.0 Port
Network:
- 2 x RJ-45: 10/100/1000Mbps Each
Remarks:
- The following features are based on firmware v1.4.12_81689_RD250916 and are subject to firmware version changes.
