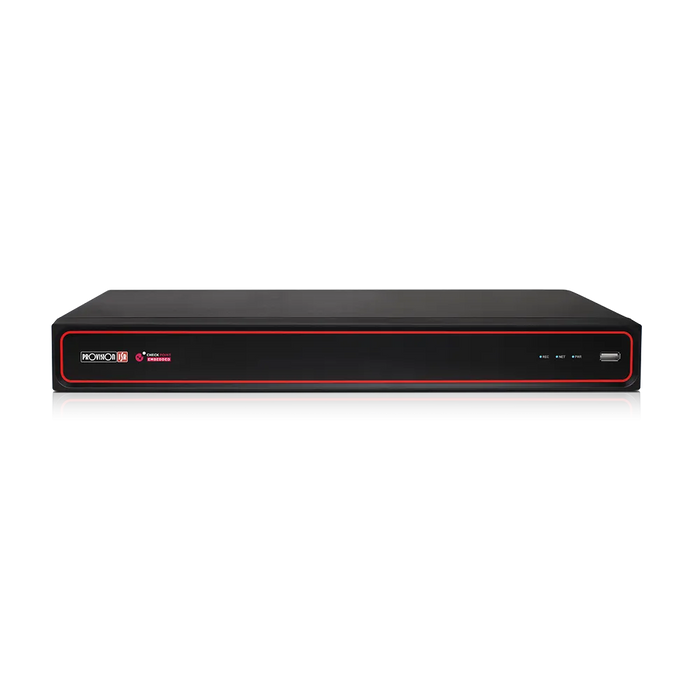

Provision-ISR NVR12-8200FAN 8-Channel NVR 12MP PoE
SKU NVR12-8200FAN
Ask an Expert - (855) 320-0003
NVR12-8200FAN
8CH 12MP Face Recognition NVR with alarms, and NDAA compliance
Provision-ISR's NVR12-8200FAN is a high-performance network video recorder supporting Face Recognition and advanced Video Analytics (DDA). The device, suitable for small-sized installations (up to 8 channels), features 8 alarm inputs + 8 alarm outputs and provides you with everything you need for a trouble-free CCTV project. This model complies with NDAA demands.
Video:
- Input: 8 Channel Support
- 8 Channel Standard Connection (Via RJ-45 Network Port)
- Output: HDMI (4K@30Hz, 1080P), VGA (1080P, 1280×1024, 1024×768)
Bandwidth:
- Incoming: 80Mbps
- Outgoing: 80Mbps
Decoding Support:
- H.265S/H.265+/H.265/H264
Analytics:
- Camera Tampering, DDA2 With Object Classification, Line Crossing (DDA / Pixel Based), Sterile Area (DDA / Pixel Based), Object Monitoring, Loitering Detection, Illegal Parking, Audio Exception, Heat Map, Object Counting (Line),Object Counting (Area), Smart Search, Face Recognition, LPR, Thermal, Crowd Gathering, People Intrusion
- Advanced Face Recognition Mode: Supports 2 Non-AI IPCs and performs face detection and recognition.
Recording:
- 8CH 12MP Real-Time
- FPS: 200 (PAL) / 240 (NTSC)
Playback:
- Local: 8Ch Simultaneously
- Remote: 8Ch Simultaneously
Audio:
- Input: 1CH + IPC Inputs
- Output: 1CH + IPC Output
- 2 Way Audio
Alarm:
- Input: 8+IPC
- Output: 4+IPC
Storage:
- 1 x SATA (Up to 10TB each)
USB Port:
- 2 USB 2.0 Port + 1 USB 3.0 Port
Network:
- 2 x RJ-45: 10/100/1000Mbps Each
Remarks:
- The following features are based on firmware v1.4.12_79765_RD250627 and are subject to firmware version changes.
