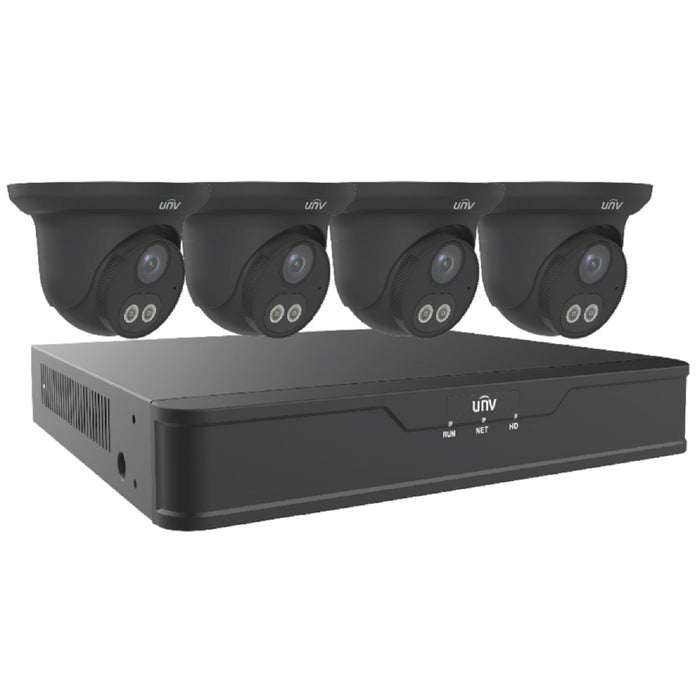

EK-S31P4DLT44T1-BK Uniview Easy S3-P Series 4 Channel NVR 64Mbps Max Throughput - 1TB HDD with 4 Port PoE with 4 x EC-T4F28M-V3 4MP Turret IP Security Camera - Black
IP Based Complete System
Availability: In stock
Return Policy
30 Days Return Policy. View our return policy here
NVR301-04S3-P4 NVR Features
- Support Ultra 265/H.265/H.264 video formats
- 4-channel input
- Plug & Play with 4 independent PoE network interfaces
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
- Support 1-ch HDMI, 1-ch VGA
- HDMI and VGA simultaneous output
- Up to 8MP resolution recording
- 1 SATA HDD
- Support cloud upgrade
EC-T4F28M-V3 Camera Features
- Day/night functionality
- Smart IR, up to 98 ft (30 m) IR distance
- 2D/3D DNR (Digital Noise Reduction)
- Ultra 265, H.265, H.264, MJPEG
- ROI (Region of Interest)
- ONVIF Conformance
- Wide temperature range: -22°F ~ 140°F (-30°C ~ +60°C)
- Wide voltage range of ±25%
- IP67
Product Details
Specifications
Video/Audio Input
- IP Video Input - 4-ch
Network
- Incoming Bandwidth - 64Mbps
- Outgoing Bandwidth - 48Mbps
- Remote Users - 128
- Protocols - TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP
Video/Audio Output
-
HDMI/VGA Output
- HDMI - 30fps @ 4K (3840x2160), 60fps @ 1920x1080p, 50fps @ 1920x1080p, 60fps @ 1600x1200, 60fps @ 1280x1024, 60fps @ 1280x720, 60fps @ 1024x768
- VGA - 60fps @ 1920x1080p, 50fps @ 1920x1080p, 60fps @ 1600x1200, 60fps @ 1280x1024, 60fps @ 1280x720, 60fps @ 1024x768
- Recording Resolution - 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF
- Audio Output - 1-ch, RCA
- Audio Compression - G.711A, G.711U
- Synchronous Playback - 4-ch
- Liveview display - 1/4
- Corridor Mode Screen - 3/4
Snapshot
- FTP/Schedule/Event Snapshot - 1-ch snapshot, up to D1 resolution
Decoding
- Decoding format - Ultra 265, H.265, H.264
- Live view /Playback - 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
- Capability - 1 x 30fps @ 4K, 4 x 25fps @ 5MP, 4 x 25fps @ 4MP, 4 x 25fps @ 3MP, 4 x 30fps @ 1080p
Hard Disk
- SATA - 1 SATA interface
- Capacity - up to 8TB for each disk (The maximum HDD capacity varies with environment temperature)
Smart
- VCA Detection by Camera - Face Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Audio Detection, Ultra Motion Detection(UMD)
- VCA Search - Face Search, Behavior Search
General Alarm
- General Alarm - Motion, Tampering, Human Body Detection, Video Loss, Alarm Input
- Alert Alarm - IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
External Interface
- Network Interface - 1 RJ-45 10M/100M self-adaptive Ethernet Interface
- USB Interface - Rear panel: 2 x USB2.0
PoE
- Interface - 4 RJ-45 10M/100Mself-adaptive Ethernet Interface
- Max Power - Max 30W for single port Max 54W in total
- Supported Standard - IEEE 802.3at, IEEE 802.3af
General
- Power Supply - 48V DC, Power Consumption: ≤9 W( without HDD )
- Working Environment - +14°F ~ +131°F (-10°C ~ + 55°C), Humidity ≤ 90% RH(non-condensing)
- Dimensions(WxDxH) - 10.2" x9.4" x1.8" (260mm x 240mm x 46mm)
- Weight ( without HDD ) - 2.43 lb (≤ 1.1 Kg)
Certification
- Certification - CE, FCC, UL, RoHS, WEEE
- CE - EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017
- FCC - Part15 Subpart B, ANSI C63.4
EC-T4F28M Specifications
Camera
- Sensor - 1/2.9", 4.0 megapixel, progressive scan, CMOS
- Min. Illumination - Colour: 0.01Lux (F2.0, AGC ON), 0Lux with IR
- Day/Night - IR-cut filter with auto switch (ICR)
- Shutter - Auto/Manual, 1 ~ 1/100000s
- Adjustment angle - Pan: 0° ~ 360° , Tilt: 0° ~ 75°, Rotate: 0° ~ 360°
- S/N - >52dB
- WDR - 120dB
Lens
- Lens Type - 2.8mm @ F2.0
- Iris - Fixed
- Angle of View (H) - 101.5°
- Angle of View (V) - 55.6°
- Angle of View (D) - 111.6°
DORI
-
DORI Distance
- Lens (mm) - 2.8
- Detect (m) - 63.0
- Observe (m) - 25.2
- Recognize (m) - 12.6
- Identify (m) - 6.3
Illuminator
- IR Range - Up to (30m) 98ft IR range
- Wavelength - 850nm
- IR On/Off Control - Auto/Manual
Video
- Video Compression - Ultra 265, H.265, H.264, MJPEG
- H.264 code profile - Baseline profile, Main profile, High profile
-
Frame Rate
- Main Stream - 20 fps @ 4MP (2560 x 1440), 30fps @ 3MP (2304 x 1296), 30fps @ 1080P (1920 x 1080), 30fps @ 720P (1280 x 720)
- Sub Stream - 30fps @ D1 (720 x 576), 30fps @ (640 x 360), 30fps @ 2CIF(704 x 288), 30fps @ CIF(352 x 288)
- Video Bit Rate - 128 Kbps~6144 kbps
- U-code - Support
- OSD - Up to 4 OSDs
- Privacy Mask - Up to 4 areas
- ROI - Up to 8 areas
- Video stream - Dual streams
- White Balance - Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
- Digital noise reduction - 2D/3D DNR
- Smart IR - Support
- Flip - Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
- Dewarping - N/A
- HLC - Support
- BLC - Support
- Defog - Digital Defog
Events
- Basic Detection - Motion detection, Tampering alarm, Audio detection, Cross line and Intrusion
- General Function - Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication
Storage
- Edge Storage - Micro SD, up to 128GB
- Network Storage - ANR, NAS(NFS)
Network
- Protocols - IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, SNMP
- Compatible Integration - ONVIF (Profile S, Profile G, Profile T), API , SDK
- User/Host - Up to 32 users. 2 user levels: administrator and common user
- Security - Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
- Client - EZStation, EZView, EZLive
- Web Browser - Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above, Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Interface
- Built-in Mic - Support
- Network - 1 * RJ45 10M/100M Base-TX Ethernet
Certification
- EMC - CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035) FCC (FCC 47 CFR part15 B)
- Safety - CE LVD (EN 62368-1) CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
- Environment - CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
- Protection - IP67 (IEC 60529)
General
- Power - DC 12V±25%, PoE (IEEE 802.3af), Power consumption: Max 4.0W
- Power Interface - Ø 5.5mm coaxial power plug
- Dimensions - Φ5.0" x 3.7"(Φ126 x 94mm)
- Weight - 0.66 lbs
- Material - Metal+Plasitc
- Working Environment - -22°F ~ 140°F (-30°C ~ 60°C), Humidity: ≤95% RH (non-condensing)
- Strorage Environment - -22°F ~ 140°F (-30°C ~ 60°C), Humidity: ≤95% RH (non-condensing)
- Surge Protection - 4KV
