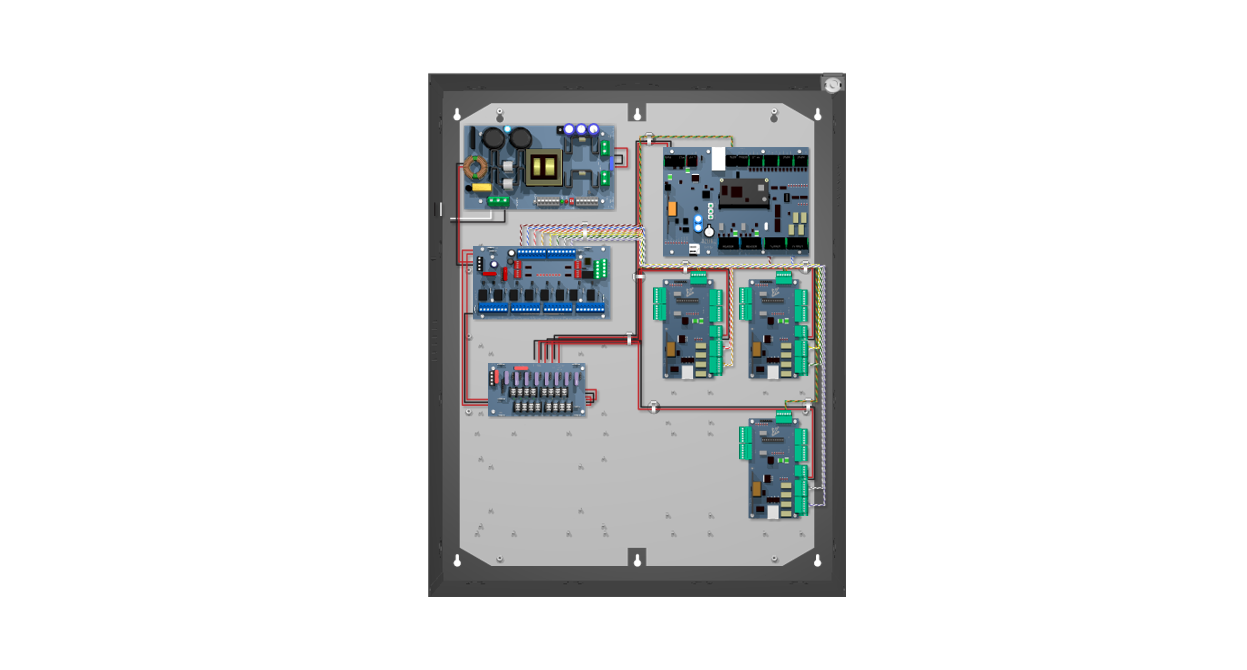

Access and Power Integration Solution:

• 8-door kit
• Prewired for 1 × 2-Door Network Controller (IC2) and 3 × Downstream Reader Interfaces (RI2M)
• Includes eFlow6NB power supply/charger (10A @ 12/24VDC, network-managed)
• PDS8CB 8-output power distribution module (2.5A max per output, PTC protected)
• VR6 voltage regulator (up to 6A output)
• ACMS8CB 8-relay access control module (2.5A max per output, fused)
• Dual-voltage outputs for controllers and locking devices
• Factory-installed wire management and harness assemblies with terminal blocks
• 16 AWG galvanized steel backplane
• Convenient knockout configuration: 1 × 2" conduit, 16 × double knockouts for 1/2" & 3/4"
• Supervision for AC fail, battery fail/presence, and low power shutdown
• Accommodates up to four 12VDC/7AH batteries
• CE compliant
• Lifetime warranty on Altronix power supply/chargers and sub-assemblies
• Dimensions: 27.25" × 21.5" × 6.5" (692.2 × 546.1 × 165.1 mm)
• Controller and expansion panels sold separately
