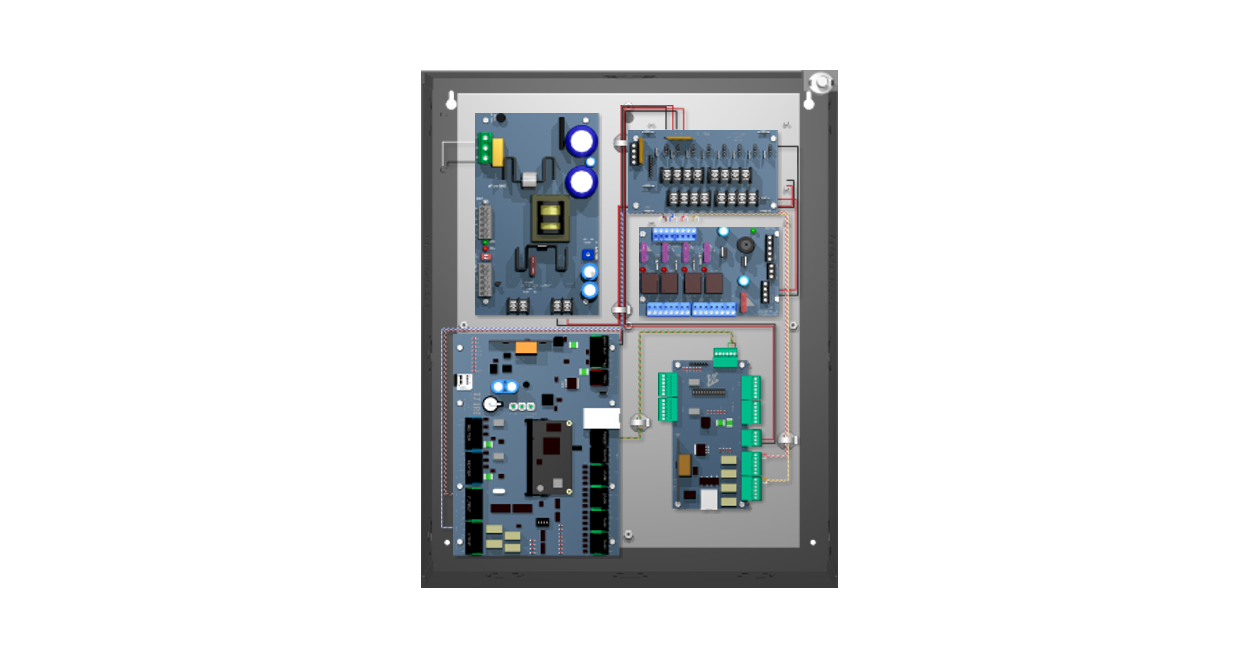

Access and Power Integration Solution:

• 4-door kit designed
• Prewired for 1 (2-Door Intelligent Controller (IC2)) and 1 (Downstream Reader Interface Panel (RI2MS))
• Includes eFlow6NB power supply/charger (6A @ 12/24VDC)
• PDS8CB 8-output power distribution module (2.5A max per output, PTC protected)
• VR6 voltage regulator (5–12VDC)
• ACM4CB 4-relay access control module (2.5A max per output, PTC protected)
• Dual-voltage outputs for controllers and locking devices
• Factory-installed wire management and harness assemblies with terminal blocks
• 16 AWG galvanized steel backplane
• Convenient knockout configuration: 1 × 1.5" conduit, 9 × double knockouts for 3/4" & 1"
• Supervision for AC fail, battery fail/presence, and FACP
• Accommodates up to two 12VDC/7AH batteries
• UL294, cUL s319-05, and CE compliant
• Lifetime warranty on Altronix power supply/chargers and sub-assemblies
• Dimensions: 18.0" × 14.5" × 4.625" (457.2 × 368.3 × 117.5 mm)
• Controller and expansion panels sold separately
