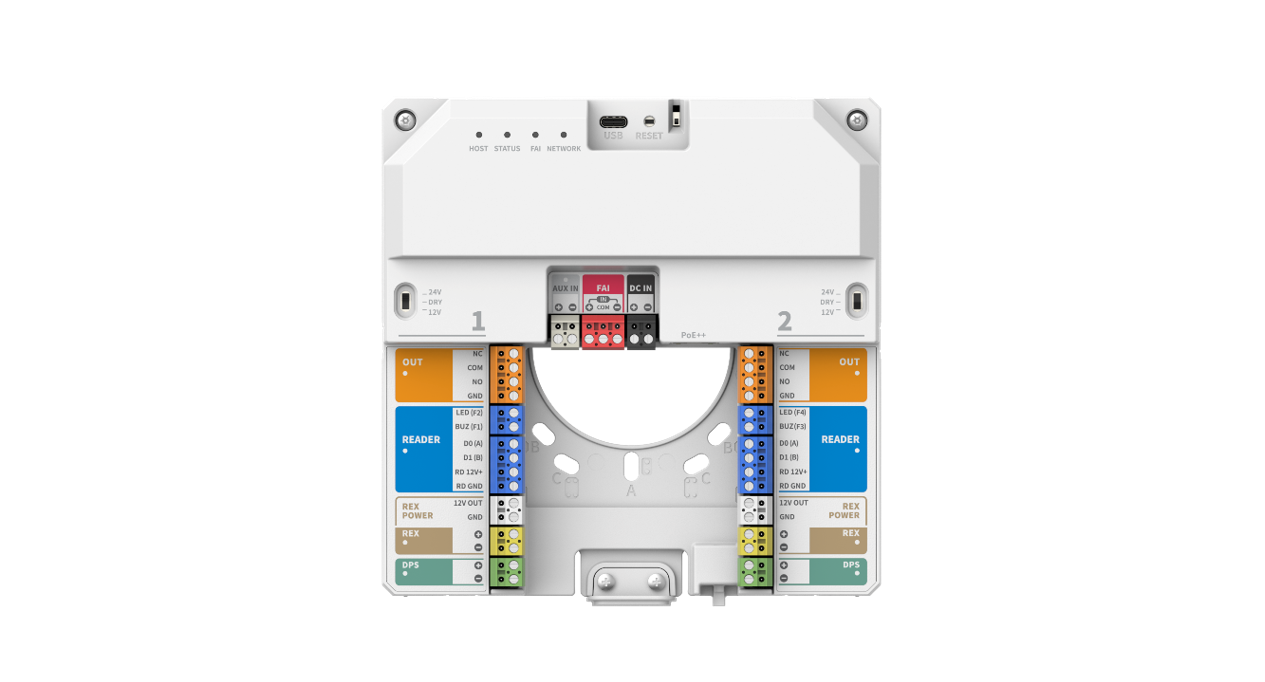

Powered by OnCAFE, IP Controller with advanced access control capabilities, offering secure and efficient door management.

• Supports 2 doors
• 2 Wiegand/OSDP reader ports (supports up to 4 OSDP readers)
• 5 supervised inputs
• Up to 4 unsupervised OSDP flex inputs
• 2 Form-C wet relay outputs with dry/12VDC/24VDC power selector
• Built-in tamper monitoring
• 1 dedicated RJ-45 10/100 PoE+ Ethernet port
• Onboard power monitoring with memory retention
• Supports up to 50,000 cardholders
• 250,000 offline event cache
• Secure operation via TLS 1.3 and AES-256 encryption
• Power: PoE++, 12-24VDC
• Current draw: 780mA on PoE+
• Dimensions: 7.24" × 7.24" × 1.67" (184mm × 184mm × 42.5mm)
