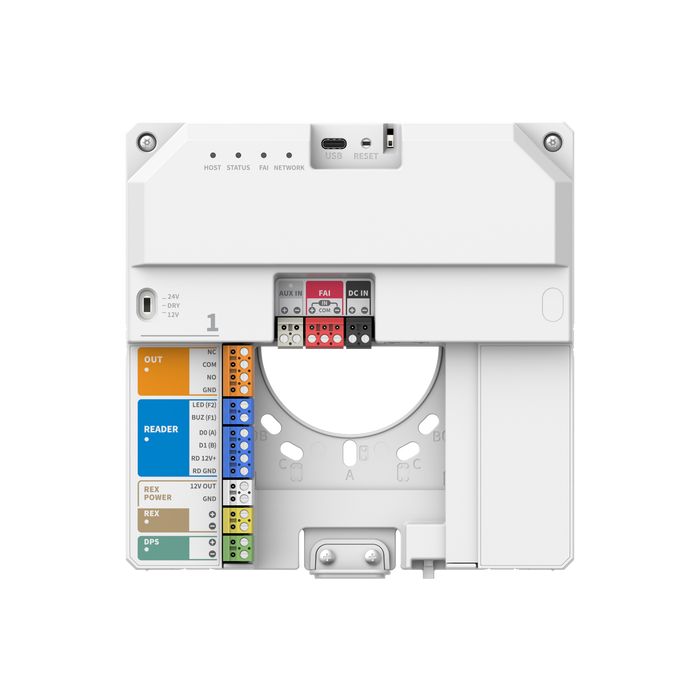

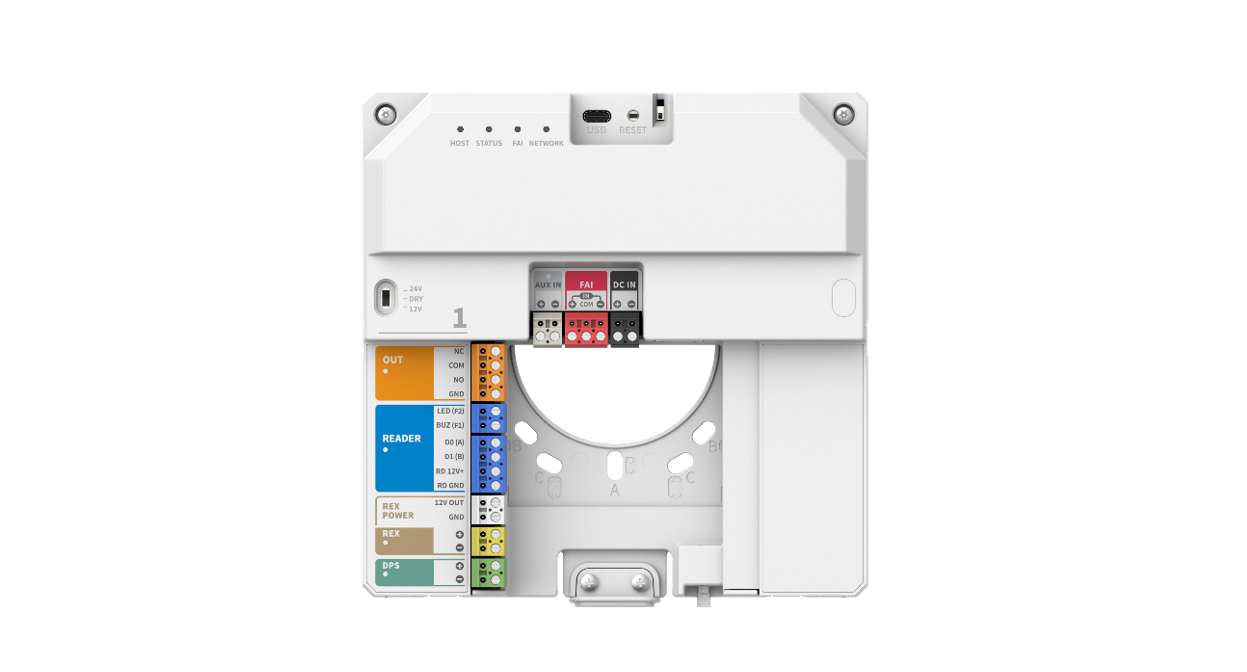

Powered by OnCAFE, this IP Controller provides secure and efficient access control with support for a single door and advanced connectivity features:

• Supports 1 door
• 1 Wiegand/OSDP reader port (supports up to 2 OSDP readers)
• 3 supervised inputs
• Up to 2 unsupervised OSDP flex inputs
• 1 Form-C wet relay output with dry/12VDC/24VDC power selector
• Built-in tamper monitoring
• 1 dedicated RJ-45 10/100 PoE+ Ethernet port
• Onboard power monitoring with memory retention
• Supports up to 50,000 cardholders
• 250,000 offline event cache
• Secure operation with TLS 1.3 and AES-256 encryption
• Power: PoE+, 12-24VDC
• Current draw: 480mA on PoE+
• Dimensions: 7.24" × 7.24" × 1.67" (184mm × 184mm × 42.5mm)
