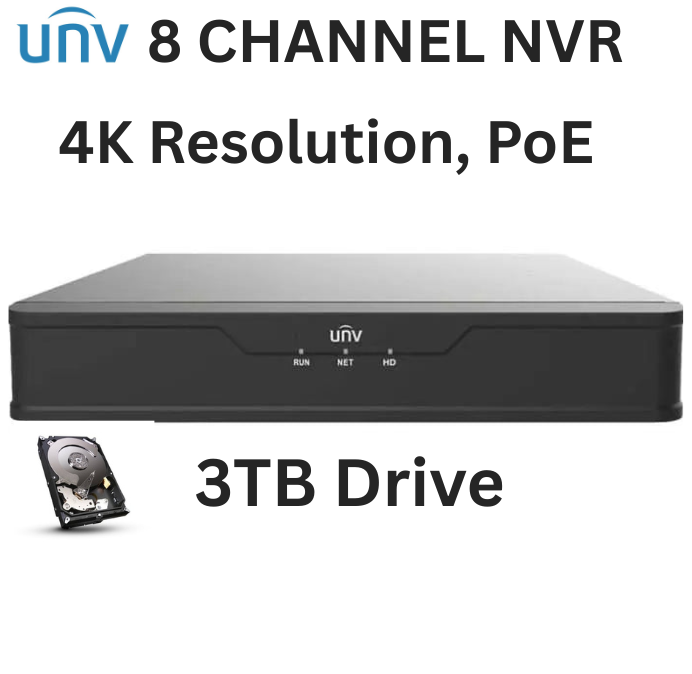

• Support Ultra 265/H.265 video formats
• 4/8-channel input
• Plug & Play with 4/8 independent PoE network interfaces
• Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
• Support HDMI and VGA simultaneous output
• Up to 8 Megapixels resolution recording
• 3TB Storage
• ANR technology to enhance the storage reliability when the network is disconnected
• Complies with Section 889 of the NDAA

Specifications

Video/Audio Input

• IP Video Input - 8-ch
• Audio Input - 1-ch, RCA

Network

• Incoming bandwidth - 80Mbps
• Outgoing bandwidth - 64Mbps
• Remote Users - 128
• Protocols - TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP
• Browser
  • IE(IE10/11) for Windows
  • Firefox (version 52.0 and above) for Windows
  • Chrome(version 45 and above) for Windows
  • Edge(version 79 and above) for Windows

Video/Audio Output

• HDMI/VGA Output
  • HDMI - 4K (3840x2160)@30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60
  • VGA - 1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1600x1200@60, 1280x720@60, 1024x768@60
• Recording Resolution - 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
• Audio Output - 1-ch, RCA
• Two-way Audio - 1-ch, RCA(Using the audio input and output)
• Audio Compression - G.711A, G.711U
• Synchronous Playback - 8-ch
• Liveview display - 1/4/6/8/9
• Corridor Mode Screen - 3/4/5/7/9

Snapshot

• FTP/Schedule/Event Snapshot - 4-ch snapshot, up to D1 resolution

Decoding

• Decoding format - Ultra 265/H.265
• Live view/Playback - 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
• Capability - 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 9 x 4MP@25, 10 x 3MP@30, 16 x 1080p@30

Hard Disk

• SATA - 1 SATA interfaces
• Capacity - Up to 8TB for each disk (The maximum HDD capacity varies with environment temperature)

Smart

• VCA Detection by Camera - Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, SMD(Smart Motion Detection)
• VCA Search - Behavior Search, People Counting Report
• People Counting - People Flow Counting, Crowd Density Monitoring
• Smart Intrusion Prevention (SIP), SMD by Camera - Total 4-ch

General Alarm

• General Alarm - Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
• Alert Alarm - IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal

External Interface

• Network Interface - 1 RJ-45 10M/100M self-adaptive Ethernet Interface
• USB Interface - Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0
• RS232 - NA
• RS485 - NA
• Alarm In - NA
• Alarm Out - NA

PoE

• Interface - 8 RJ-45 10M/100M self-adaptive Ethernet Interface
• Max Power - Max 30W for single port, Max 75W in total
• Supported Standard - IEEE 802.3af/at

General

• Power Supply - 52V DC/1.8A, Power Consumption: ≤ 10W (without HDD)
• Working Environment - +14°F~+131°F (-10°C~+ 55°C), Humidity ≤ 90% RH (non-condensing)
• Dimensions (WxDxH) - 10.2" x 8.7" x 1.8" (260mm x 222mm x 47mm)
• Weight (without HDD) - 2.16lb (≤ 0.98Kg)

Certification

• Certification - CE, FCC, UL, RoHS, WEEE
• CE - EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017
• FCC - Part15 Subpart B, ANSI C63.4
