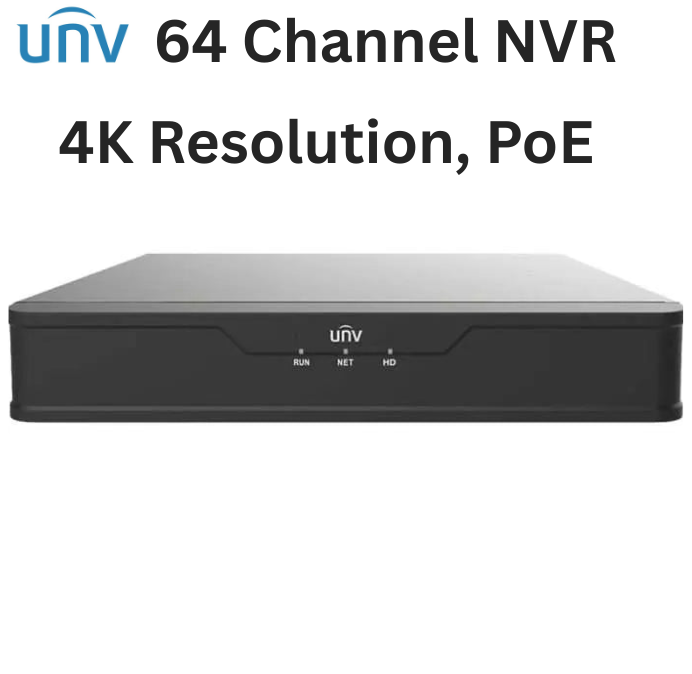

NVR308-64X Uniview Prime X Series 64 Channel NVR 384Mbps Max Throughput - No HDD
Network Video Recorder
SKU NVR308-64X
by Uniview
Availability: In stock
Sale
Original price
$4,419.00
Original price
$4,419.00
-
Original price
$4,419.00
Original price
$4,419.00
Current price
$4,198.05
$4,198.05
-
$4,198.05
Current price
$4,198.05
Add a Hard Drive (Optional)
Please note: A hard drive is needed to store data from your security DVR. Please select a hard drive below.
No Hard Drive
Pre-installed 1TB SATA Hard Drive +$94.99
Pre-installed 2TB SATA Hard Drive +$119.99
Pre-installed 3TB SATA Hard Drive +$139.99
Pre-installed 4TB SATA Hard Drive +$169.99
Pre-installed 6TB SATA Hard Drive +$234.99
Pre-installed 8TB SATA Hard Drive +314.99
Pre-installed 10TB SATA Hard Drive +394.99
Pre-installed 12TB SATA Hard Drive +$439.99
Return Policy
30 Days Return Policy. View our return policy here
SKU: NVR308-64X
Brand: Uniview
- Supports Ultra H.265/H.265/H.264 video formats
- 64-channel input
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
- Supports 2-ch HDMI, 1-ch VGA. HDMI1 and HDMI2 up to 4K (3840x2160) resolution
- HDMI1, HDMI2, VGA independent outputs provided
- Up to 12 Megapixels resolution recording
- Supports RAID 0, 1, 5, 6, 10
- 8 SATA HDDs, Up to 10TB for each HDD
- Complies with Section 889 of the NDAA
Product Details
Specifications
Video/Audio Input
- IP Video Input - 64-ch
- Two-way Audio Input - 1-ch, RCA
Network
- Incoming Bandwidth - 384Mbps
- Outgoing Bandwidth - 384Mbps
- Remote Users - 128
- Protocols - P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
- HDMI/VGA Output - VGA: 60fps @ 1920x1080p, 50fps @ 1920x1080p, 60fps @ 1600x1200, 60fps @ 1280x1024, 60fps @ 1280x720, 60fps @ 1024x768, HDMI1/HDMI2(HDMI audio output is not supported): 30fps @ 4K (3840x2160), 60fps @ 1920x1080p, 50fps @ 1920x1080p, 60fps @ 1600x1200, 60fps @ 1280x1024, 60fps @ 1280x720, 60fps @ 1024x768
- Recording Resolution - 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
- Audio Output - 1-ch, RCA
- Synchronous Playback - 16-ch
- Corridor ModeScreen - 3/4/5/7/9/10/12/16/32
Decoding
- Decoding format - Ultra 265/H.265/H.264
- Liveview/Playback - 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
- Capability - 2 x 30fps @ 12MP, 4 x 30fps @ 4K, 8 x 30fps @ 4MP, 9 x 25fps @ 4MP, 16 x 30fps @ 1080P, 32 x 25fps @ 960p, 36 x 30fps @ 720p, 64 x D1
Hard Disk
- SATA - 8 SATA interface
- Capacity - up to 10TB for each HDD
- eSATA - 1 eSATA interface
Disk Array
- Array Type - RAID 0, 1, 5, 6, 10
External Interface
- Network Interface - 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces
- Serial Interface - 1 x RS232, 1 x RS485
- USB Interface - Front panel: 2 x USB2.0, Rear panel: 1 x USB3.0
- Alarm In - 16-ch
- Alarm Out - 4-ch
General
- Power Supply - 100~240 VAC, Power Consumption: ≤ 25 W (without HDD)
- Working Environment - +14°F ~ +131°F (-10°C ~ + 55°C), Humidity ≤ 90% RH(non-condensing)
- Dimensions(WxDxH) - 17.4" x 16.8"x 3.5" (442mm x426mmx 89mm)
- Weight (without HDD) - 12.57lb (≤ 5.7Kg)
